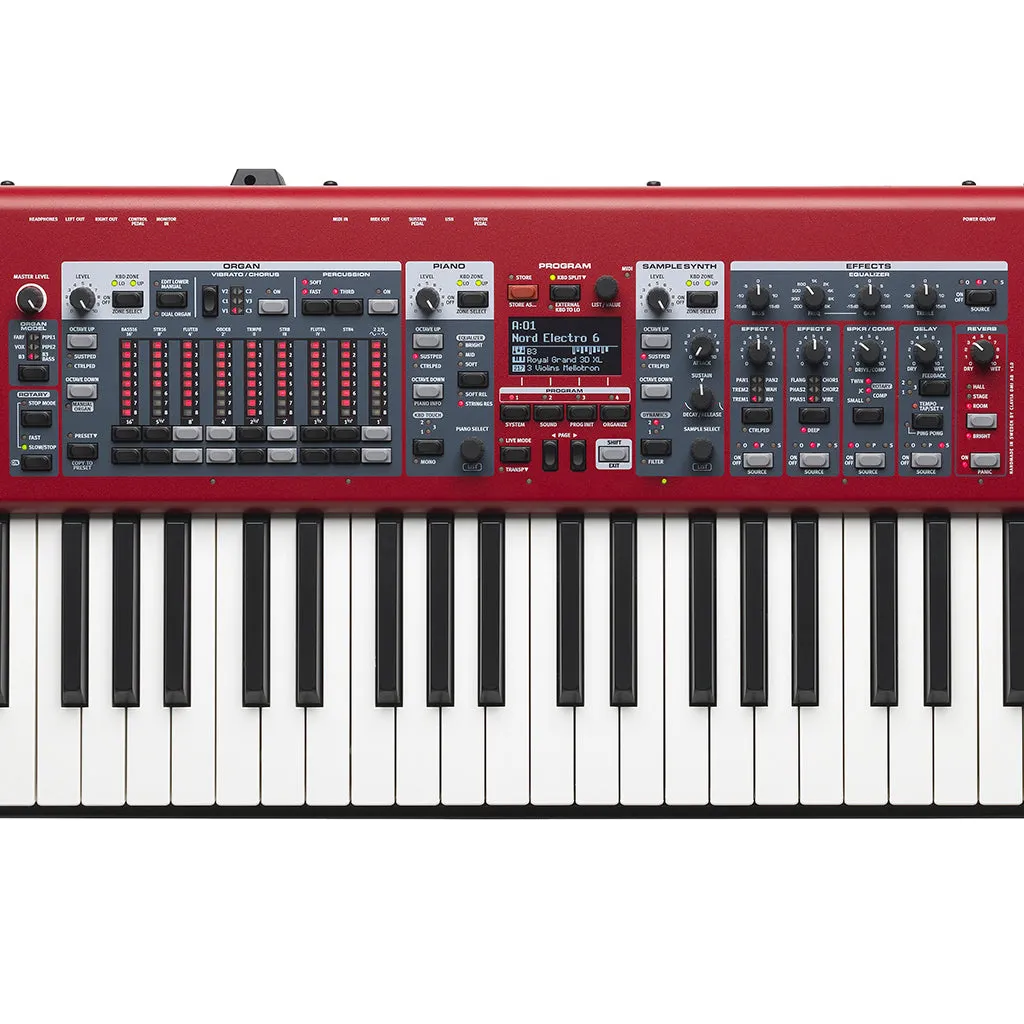

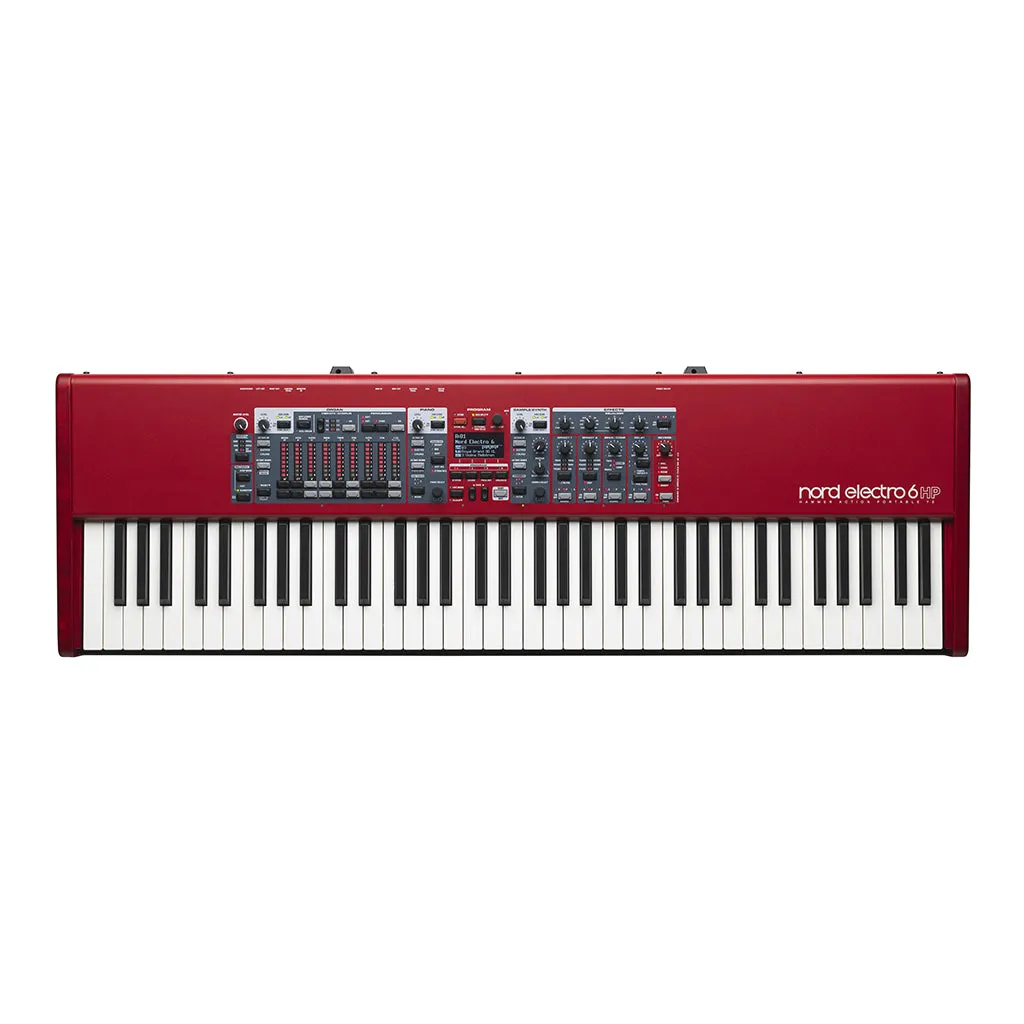

The Nord Electro 6 combines our award-winning emulations of vintage electro mechanical and acoustic instruments in an ultra-portable package. With 3 independent sound sections, a new streamlined user interface and the addition of Seamless Transitions, we're proud to present the most powerful and flexible Electro ever - a refined modern classic.
Features
General
- Seamless Transitions
- 3 part multi-timbral
- Split and Layer all 3 sections with optional Split Point Crossfades
- OLED Display for excellent overview
- Organize Mode for quickly rearranging programs, sounds and pages
Piano Section
- 1 GB memory for Nord Piano Library
- Piano Filters
- Greatly expanded polyphony
- Sympathetic String Resonance
- 4 Dynamic Curves
Sample Synth
- Expanded memory (512 MB) for Nord Sample Library
- Extended Voice Polyphony
- Dedicated Sample Synth section with Attack, Decay/Release and dynamic controls
Organ
- B3 Tonewheel, B3 Bass, Vox and Farfisa simulations
- 2 Pipe Organ models
- Dual Organ Mode
- Model 122 Vintage Rotary Speaker
- Physical Drawbars on 6D 61 and 6D 73 models
- Mount for Half-Moon Switch for Rotary Speaker control (6D 61/73)
Effects
- A wide range of instantly tweakable high quality stereo effects modelled after classic stomp boxes
- Reverb with Bright Mode
Specs
PERFORMANCE
- Three independent sound sections Organ, Piano and Sample Synth that can be used simultaneously as a layer or a split
- 6 Keyboard Split points (C3-F5) with Split Point Crossfade functionality
- Organize/Page mode: Group sets of up to four Programs into Pages, and arrange these using the Organize mode
- 4 Live Slots
- External keyboard feature: Freely assign sound engines to be controlled by an external keyboard, while others are played from the Nord Electro 6.
KEYBED
- Nord Electro 6 HP: 73-key (6 octaves, E-E) Velocity sensitive Hammer Action Portable keyboard
ORGAN SECTION
- C2D B3 Tonewheel, B3 Bass, Vox, Farfisa and 2 Pipe organ models
- User adjustable percussion levels, percussion decays and key click level
- Vibrato / Chorus Control with separate functionality for each model (the classic C1, C2, C3, V1, V2, V3 options for the B3, Vibrato for the Farfisa, Chorus/Detune for Pipe organ models )
- 3 Tonewheel modes: select the level of "vintage" desired
- Dual Organ mode for control of two independent manuals
- Manual Organ mode
- Mount for Half-Moon Switch on Electro 6D 61/73
- Nord Electro 6D 61/73: 9 Physical drawbars
- Nord Electro 6 HP: Digital LED drawbars
PIANO SECTION
- 1 GB memory dedicated to the Nord Piano Library
- Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
- Each category can contain several different models.
- All pianos can be replaced using the Nord Sound Manager application
- Advanced String Resonance-control (Gen 2)
- Soft Release
- EQ/Filter
- 4 Dynamic Curves
- Stereo pianos and samples can be played back in mono
- 120 Voices polyphony for Piano Library sounds.
SAMPLE SYNTH SECTION
- 512 MB memory dedicated to the Nord Sample Library
- All samples can be replaced using the Nord Sound Manager application
- The Sample Synth section comes shipped with an extensive selection of one hundred samples from the Nord Sample Library
- Attack and Decay/Release control
- 4 levels of dynamic velocity control
- Velocity sensitive low pass filter
- 46 voice polyphony for Sample Library sounds.
EFFECT SECTION (All effects in Stereo)
Effect 1
- Pan, Tremolo, Wah and Ring Modulator
- Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
- Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal
Effect 2
- Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
- Two selectable depths for each effect
Amp Simulations
- Comp/Amp - three amp/speaker simulations, compressor, C2D 122 rotary speaker, Tube Overdrive
- Drive/Compression amount controlled with the Drive knob
- Rotary speed controls - Slow, Fast and Stopped
- Close or Normal microphone placement for 122 Rotary Speaker simulation
- User adjustable rotary treble and bass rotor speeds and acceleration rates
- Three band EQ, with sweepable mid. /- 15 dB gain/attenuation
Master Effects
- Dedicated Reverb with 3 modes - Room, Stage and Hall - all with optional Bright Mode and Dry/Wet control
- Dedicated Delay Effect - Rate, Amount, Tap-tempo and Stereo Ping Pong

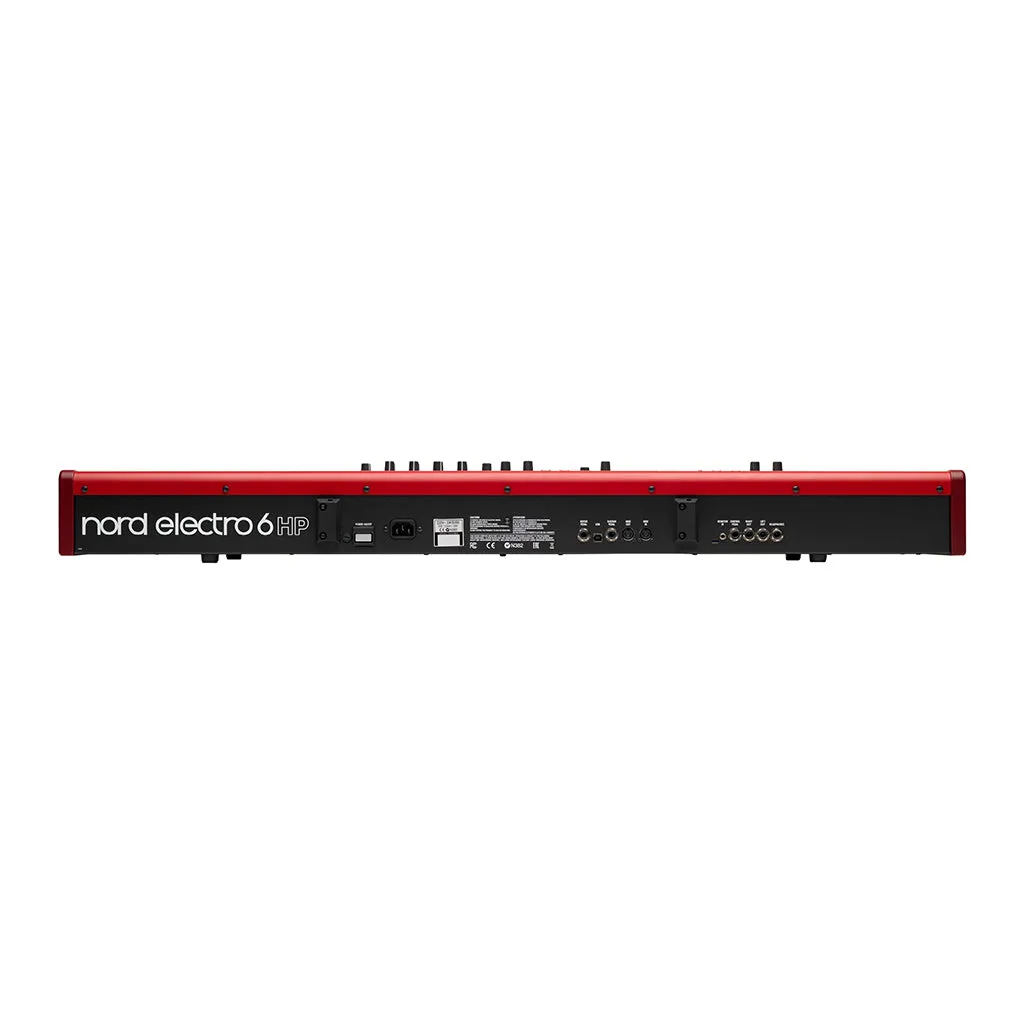

CONNECTIONS
- 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
- 1 Monitor input - 1/8", 3,5 mm stereo jack
- 1 Headphone output - ¼", 6,35 mm stereo jack
- 1 Control pedal input - ¼", 6,35 mm TRS stereo jack, like Yamaha FC7, Roland EV-7, Roland EV-5, Korg EXP2 and Korg XVP10.
- 1 Sustain pedal input - ¼", 6,35 mm jack.
- 1 Rotary Speaker speed switch pedal input - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
- MIDI In, MIDI Out - 5 pin DIN connectors
- USB - type B connector - for transferring sounds and USB MIDI
- IEC C14 power connector
DIMENSIONS
- Nord Electro 6 HP: 1074 mm (42.3") x 121 mm (4.8") x 344 mm (13.5")
